Submersible 3 Core Flat Cables

Application:
The PVC insulated and sheathed 3 core flat cables are used for giving electrical connection to submersible pump motors. These are manufactured keeping in mind the severe, tough and difficult conditions in which they have to operate. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. These cables conform to and are marked IS: 69421990 up to 4.00 sq mm. Cables 6.00 sq mm and above generally conform to IS: 69421990.

Features:
Manufactured from bright annealed 99.97% pure bare copper conductors. Low conductor resistance. Inner cores are insulated with a special grade PVC compound formulated and manufactured in—house Tough robust outer PVC jacket protects it from the oils. greases. various chemicals and abrasions, thereby giving long life and electrical safety.

Specifications
Working Voltage : Up to 1100 V
Temperature Range : —l5°C to +70°C
Sizes : 1.50 sq mm to 4.00 sq mm with ISI mark
6.00 to 95.00 sq mm generally conforming to IS: 694
Color Code 2 3 core — red, yellow, blue
black or gray outer sheath
Specification : IS: 694
Packing : 500/1000 meters on drums

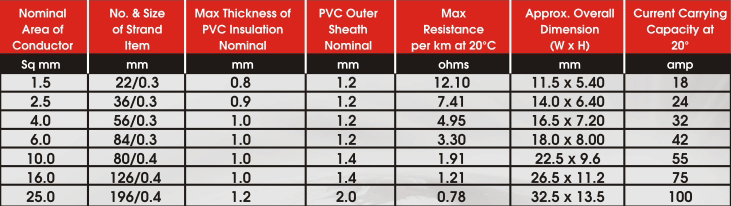

Submersible Flat Cable (Three Core) Voltage grade 1 100 V, Conforming to IS: 694-1990
ll.5x5.40
32.5 x l3.5
