Solar Cable

0.6/ I KV XLPE Insulated Low Voltage Power Cables

Application

CALTER' PV Cables is used for photovoltaic systems,This cable links photovoltaic panels and inverters.
It is used for fixed installations outdoors & indoors,and equipment with high mechanical require- ments and extreme weather C0lldll’lOf'lS.


Construction

Conductor : Electrolytic Flexible Tinned Copper Class » 5 according to IEC 60228
Insulation : special polyolefin Elastomer—Cross Linked. Halogen Free
Sheath : special polyolefin Elastomer-Cross Linked,Halogen Free (Red/Black)

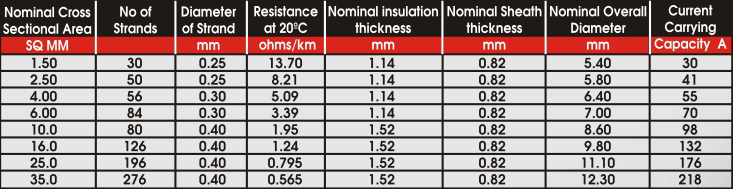

Techical Data

Halogen tree : IEC 60754-1
Rated Voltage Uo/U (Um) :0.6/ l I-(V)
Operating Temperature range : -40 C to +90 C
Max. Conductor temperature in service : 120 C
Short-circuit max. conductor temperature : 250 C
Gases Corroslvity : 250 C
Smoke density : IEC 61034-2
Weather resistance : Excellent
UV Resistant : Yes
Flame retardent :IEC 60332 - l
