H07RN-FCable

Application

CALTER’ Rubber is extreme weather, oil & Grease, water resistant cable. Applicable for industrial and outdoor hanging and extreme flexibility is required. The Cable is particulary suitable for heavy industry, oil & chemical industries as the rubber is oil & grease resistant, Fire resistant, Halogen free also used in turbines, Marine & submersible pumps


Construction

Conductor : Boctrolytc Flaxible Copper Class 5 according to IEC 60228 (BARE & TNNED)
Insulation : Special formulated thermoplastic rubber
Sheath : Special formulated thermoplastic rubber compound


Colour Coding

Red, Yellow, Blue, Black, Green, Grey, Brown Special Colours and Dual Colours with Lining available

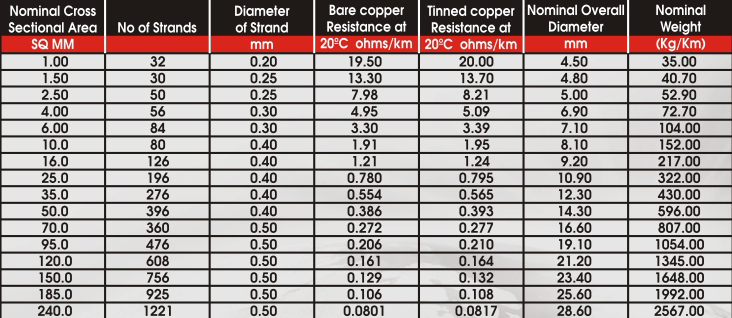

Techical Data

Halogen free : IEC 60754-1
Rated Voltage Uo/U (Um) : 600/1000V
Operating Temperature range : -20 C to +90 C
Max. Conductor temperature in service : 90 C
Gases Corrosivity : IEC 60754-2
Weather resistance : Excellent
UV Resistant : Yes
Flame retardent : IEC 60332-1
Mechanical, Abrasion, tear, notch, pressure resistant : Excellent
oil & chemical resistant : Excellent
