H07BQ-FCable

Application

Calter TPU cables is a extreme mechanical, abrasion, tear, natch and wear resistant cable. Applicable where high wear, friction resistance & extreme bending is required. The cable is particularly suitable for food & wine industry as the polyurethane is microbe & hydrolysis resistant.


Construction

Conductor : Electrolytic Flexible plain copper class - 5 according to IEC 60228
Insulation : special EPR
Sheath : PUR Halogen free polyurethane compound type either grade.


Colour Coding

2 core - brown, blue
3 core - brown, blue, green/yellow
4 core - brown, blue, black, green/yellow
5 core - brown, blue, black, Black green/yellow

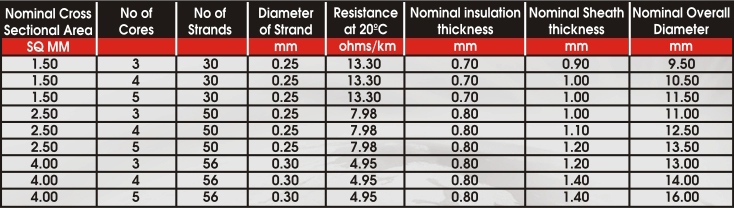

Techical Data

Halogen Free : IEC 60754-1
Rated Voltage Uo/U (Um) : 0.6 / 1 kV
Operating Temprature range : -40 C to +90 C
Max. Conductor temperature in service : 90 C
Gases corrosivity : IEC 60754-2
Smoke density : IEC 61034-2
Weather resistance : Excellent
UV Resistant : Yes
Flame retardent : IEC 60332 - 1
mechanical, abrasion, tear, notch, pressure resistant : Excellent
oil & chemical resistant : Excellent
